If you’ve spent any time researching risk management, you’ve almost certainly come across both terms. A risk matrix. A risk register. Sometimes they’re used interchangeably. Sometimes people argue they’re completely different things. Occasionally, someone describes the risk matrix as part of the risk register, which — as you’ll see — is closer to the truth.
The confusion is understandable, because both tools deal with the same fundamental problem: identifying what could go wrong and deciding how seriously to take it. But they approach that problem from different angles, serve different functions in your risk management program, and are most powerful when they’re used together rather than as alternatives. This article explains exactly what each tool is, how they differ, and why you need both if you’re serious about managing risk effectively in your organisation.
What Is a Risk Matrix?

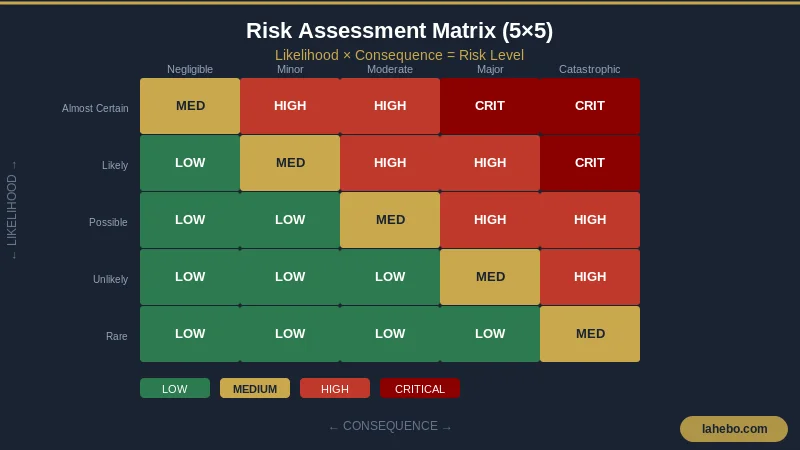

A risk matrix — also called a risk assessment matrix, risk heat map, or probability-impact matrix — is a visual tool for evaluating and comparing risks based on two factors: how likely they are to occur, and how severe the consequences would be if they did.
The classic risk matrix is a grid, usually 3×3, 4×4, or 5×5 in format, with likelihood on one axis and consequence on the other. Each cell in the grid corresponds to a risk level — typically colour-coded from green (low risk) through yellow and orange to red (critical risk). When you plot a risk on the matrix, you’re assigning it a combined likelihood-consequence score.
For example, a risk rated as “unlikely” to occur but potentially “catastrophic” in consequence would sit in a different part of the matrix than one rated “almost certain” but “minor” in consequence. The matrix helps you make that comparison at a glance, and prioritise where to focus your risk management effort.
Risk matrices are particularly useful in workshops, risk assessments, and early-stage planning, where you need to quickly gauge relative severity across a range of risks without deep analysis. They’re visual, intuitive, and easy to share with stakeholders who don’t live and breathe risk management.
The limitation of a risk matrix used in isolation? It only tells you the rating. It doesn’t tell you what the risk actually is, who owns it, what you’re doing about it, or whether anything has changed since you last looked at it.
What Is a Risk Register?
A risk register is a structured record that documents all identified risks to an organisation, project, or business unit. Where a risk matrix is primarily a visual rating tool, a risk register is a living management document.
A comprehensive risk register typically includes: a description of each risk, the category it falls into (operational, financial, strategic, compliance, etc.), the likelihood and consequence ratings (which feed directly from the risk assessment matrix), the risk level or score, the controls and mitigation strategies currently in place, the residual risk rating after controls are applied, the risk owner — the person responsible for managing it — treatment actions with due dates, and the review date and status.
The key difference from a risk matrix is that the register is actionable and ongoing. It’s not just a snapshot of what’s rated high or low today — it’s a record of every risk, how you’re managing it, who’s responsible, and what still needs to be done.
For a full breakdown of what a risk register contains and how it fits into your risk management framework, see our complete guide: What Is a Risk Register? The Complete Guide for Australian Businesses.

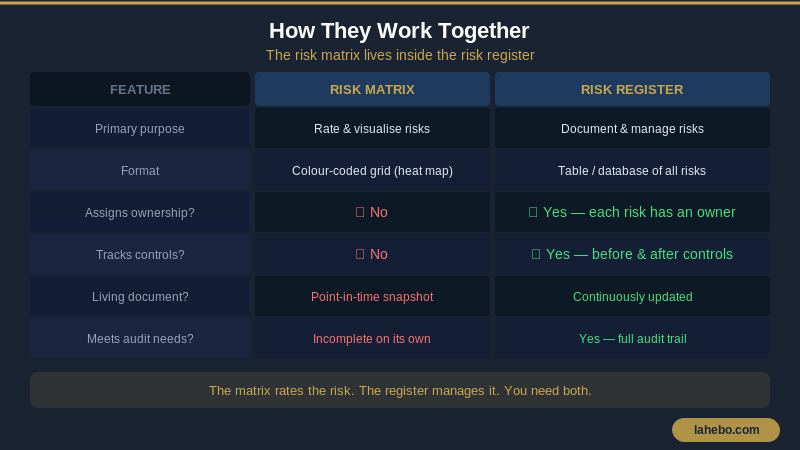

Risk Register vs Risk Matrix: A Comparison
Here’s how the two tools sit side by side:
| Feature | Risk Matrix | Risk Register |
|---|---|---|
| Primary function | Visualise and rate risks | Document and manage risks |
| Format | Visual grid (heat map) | Table or database |
| Actionable? | No — rating only | Yes — includes treatment plans and due dates |
| Ongoing? | Point-in-time snapshot | Living document, updated continuously |
| Assigns ownership? | Not typically | Yes — each risk has a named owner |
| Best used for | Risk assessment workshops, prioritisation | Risk governance, compliance, audit, reporting |
| Meets audit needs alone? | No — incomplete without the register | Yes — provides a full audit trail |
The key takeaway: a risk matrix tells you the score. A risk register tells you what to do about it.
How They Work Together
In practice, the risk matrix and risk register aren’t competing tools — the matrix is embedded inside the register. Here’s how that works in a typical risk management cycle.
First, your team identifies a potential risk during a risk assessment workshop or operational review. It gets entered into the risk register with a description and category. Then you assess the risk’s likelihood and consequence using your organisation’s rating scale, and plot it on the risk matrix to determine the overall risk level — low, medium, high, or critical. That rating is recorded in the register.
Next, the register captures who is responsible for the risk and what control measures are in place. A second matrix rating — the residual risk — shows the level after controls are applied. Any additional actions needed to further reduce the risk are documented with due dates and responsible parties.
Finally, the register is reviewed on a scheduled basis or when circumstances change. The matrix helps visualise how the overall risk profile of the organisation changes over time.
A practical example: imagine a Queensland construction company identifies a risk of falls from height at a new site. The risk matrix rates it as high likelihood, critical consequence — a red risk. That rating feeds into the risk register, which records the specific hazard, names the site supervisor as risk owner, documents the controls in place (safety harnesses, exclusion zones, toolbox talks), rates the residual risk after controls as medium, and sets a review date for one month into the project. Without the register, you just know it’s red. Without the matrix, you don’t have a consistent rating framework to compare it against other risks.
The Most Common Mistake: Treating the Matrix as the End Point
One of the most frequent risk management failures in Australian businesses is treating the risk heat map as the deliverable, not the starting point. Completing a risk assessment and producing a colour-coded matrix feels productive — it looks good in a board deck. But if there’s no risk register behind it — no owners, no controls documented, no treatment plans, no review cycle — all you’ve done is identify risks, not manage them.
Regulators, auditors, and insurers don’t want to see a risk matrix. They want to see evidence that risk management is an active process: that risks are owned, that controls are monitored, and that your organisation responds when things change. That’s what a risk register provides.
If you’re building a risk register from scratch, our step-by-step guide covers exactly how to do it: How to Build a Business Risk Register.
Frequently Asked Questions
Is a risk matrix the same as a risk register?
No. A risk matrix is a rating tool — a grid that scores risks based on likelihood and consequence. A risk register is a comprehensive document that captures all risks along with their ratings, owners, controls, treatment actions, and review dates. The risk matrix is typically embedded inside the risk register as one component of the overall risk assessment process.
What is a risk heat map?
A risk heat map is another name for a risk matrix. The term “heat map” reflects the colour coding used in most matrices — green for low risk, yellow and orange for moderate, red for high or critical risk. It’s a visual way to show the relative severity and likelihood of risks at a glance. Heat maps are useful for board reporting and stakeholder communication, but they need to be backed by a full risk register to be part of an effective risk management process.
Can I use a risk matrix without a risk register?
You can, but it limits your risk management significantly. A matrix alone gives you a point-in-time rating for each risk with no context about controls, ownership, or treatment. It can’t support compliance obligations, audit requirements, or demonstrate ongoing due diligence. For any meaningful risk program — whether for WHS, ISO, regulatory, or organisational purposes — you need a register.
How many risk rating categories should a risk matrix have?
It depends on the size and complexity of your organisation. A 3×3 matrix (low, medium, high) is sufficient for smaller or simpler operations. A 5×5 matrix — with ratings from rare/negligible through to almost certain/catastrophic — gives more granularity and is used by larger organisations or those working under formal risk frameworks like ISO 31000. The key is consistency: once you set a rating scale, apply it uniformly across all risks.
See How Lahebo Brings Both Together
Lahebo’s risk management platform is built around the understanding that a risk matrix and a risk register work best as a system, not as separate tools. Within Lahebo, you can build and customise your risk assessment matrix to match your organisation’s rating criteria, then use it automatically when logging risks to your register. Every risk carries a consistent, matrix-derived rating. Owners are assigned, controls are documented, treatment actions are tracked, and review dates are monitored — all in one place.
The result is a risk register that’s genuinely connected to your risk assessment methodology, not a spreadsheet where someone manually updates a colour code whenever they remember.
